Alternative Spring Configuration for CT90 Brake Switch

A while back I was working on one of my basket case K1 CT90's and needed a spring for the brake light switch that is actuated by the rear brake lever and brake pedal.  At the time DrATV/Beatrice was out of stock of the spring so I decided to find another spring to do the job as I was more focused on getting something that worked and less on having be a picture perfect restoration.

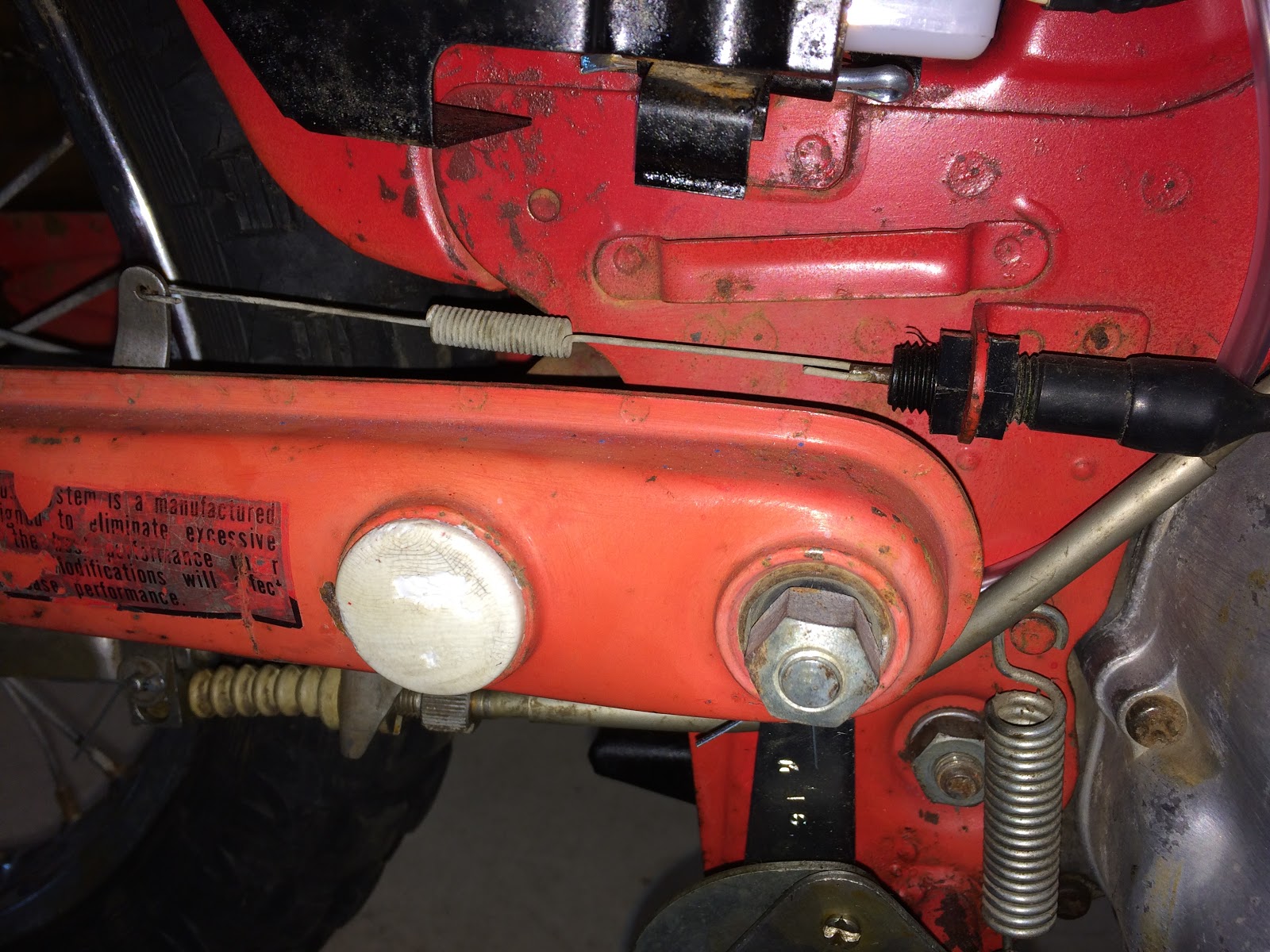

Here is a picture from one of my other CT90's on what a stock spring looks like in this application.

My goal was to find a replacement spring that had the same stiffness as the stock spring and I ended up finding a spring on Amazon that had the right stiffness and looked like I could make it work. iIt was only $2.89 for two springs, so I decided to give them a try and added the springs to my next Amazon order.

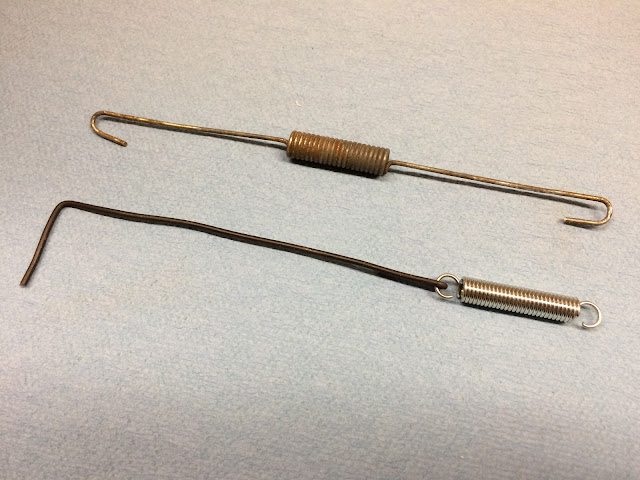

Since the spring from Amazon was not the same length I had to add a section of bailing wire to get a final configuration that would fit in the same location as a stock spring.  Here is a picture on the new spring next to a stock spring.

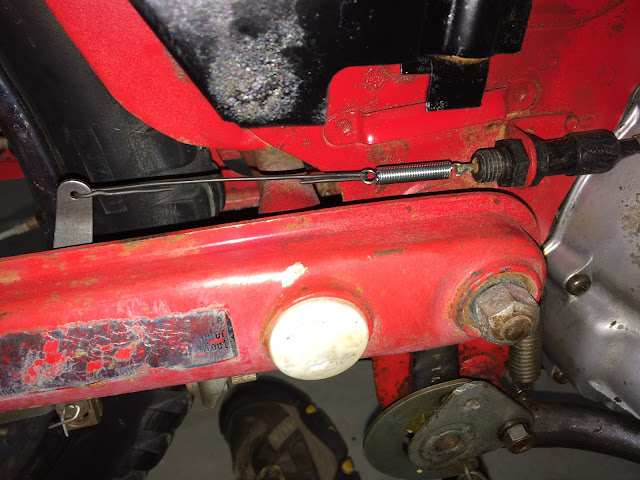

I installed the new spring on my K1 CT90 and while it may not be pretty, it's been working great.
